‍DS1800 series miniature forward-looking sonar‍

The DS1800 ultra-high frequency forward-looking sonar is currently the highest frequency forward-looking sonar in our company's product line, which can provide near optical imaging resolution and is specifically used for close range high-precision imaging, such as detecting close range targets, close range observation, etc. It can replace optical imaging in turbid water bodies.


This sonar provides a domestically produced version with all components, and also offers models with a maximum working depth of 4km.






DS1800 Technical Parameters

Center frequency: dual frequency; The conventional frequencies are 1.8MHz and 2.7MHz; Other frequencies can be customized;


Range: 1-30m, continuously adjustable;


Distance resolution: 2.5mm;


Refresh frequency (range related):>10Hz;


Equivalent number of beams: 256;


Transmission signal: CW or CHIRP, automatic or manual selection;


Maximum working water depth: 300m;


Maximum working speed: 6kn. Exceeding this speed has no impact on usage, but may reduce the detection distance (design specifications);


Work blind spot: ≤ 0.1m;


Imaging quality: The intensity of the target and artifacts is greater than 30dB (design specification);



Detection distance, center beam width, and opening angle (maximum detection distance for strongly reflective targets such as rocks, coasts, etc.; small target detection distance for targets with a reflection intensity of -20dB; clear water quality, flat sediment bottom, good or moderate hydrological conditions, and sailing speed<6kn)：

Frequency1.8MHz2.7MHz
Horizontal center beamwidth0.6°0.4°
Horizontal opening angle80°50°
Vertical opening angle20°15°
Maximum detection distance25m8m
Effective distance resolution8mm/5mm/


DS1800 scans object images

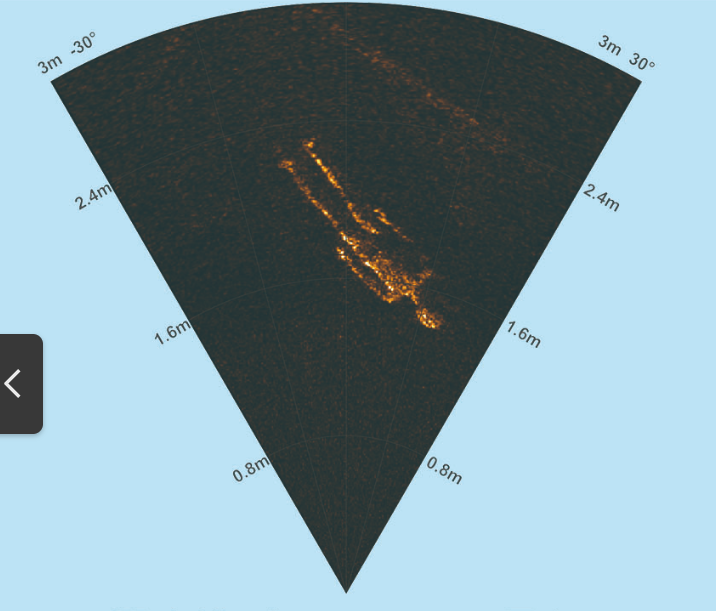

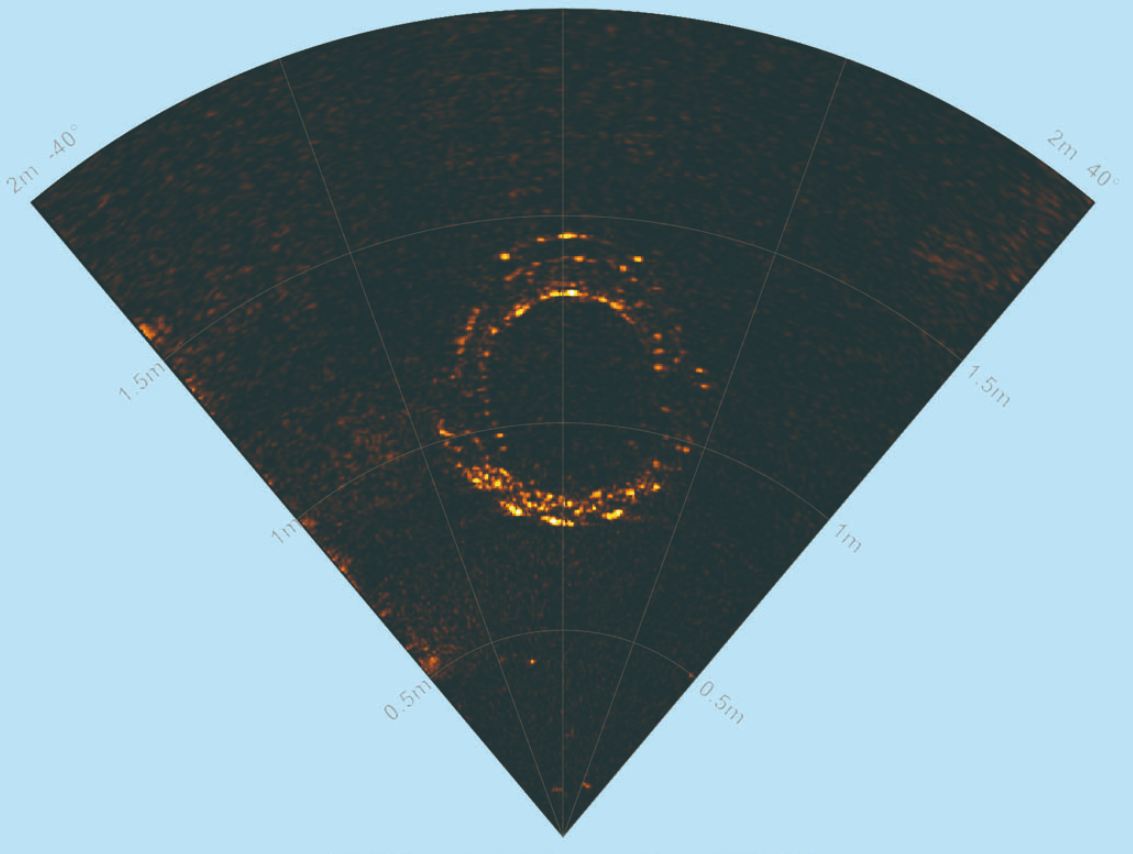

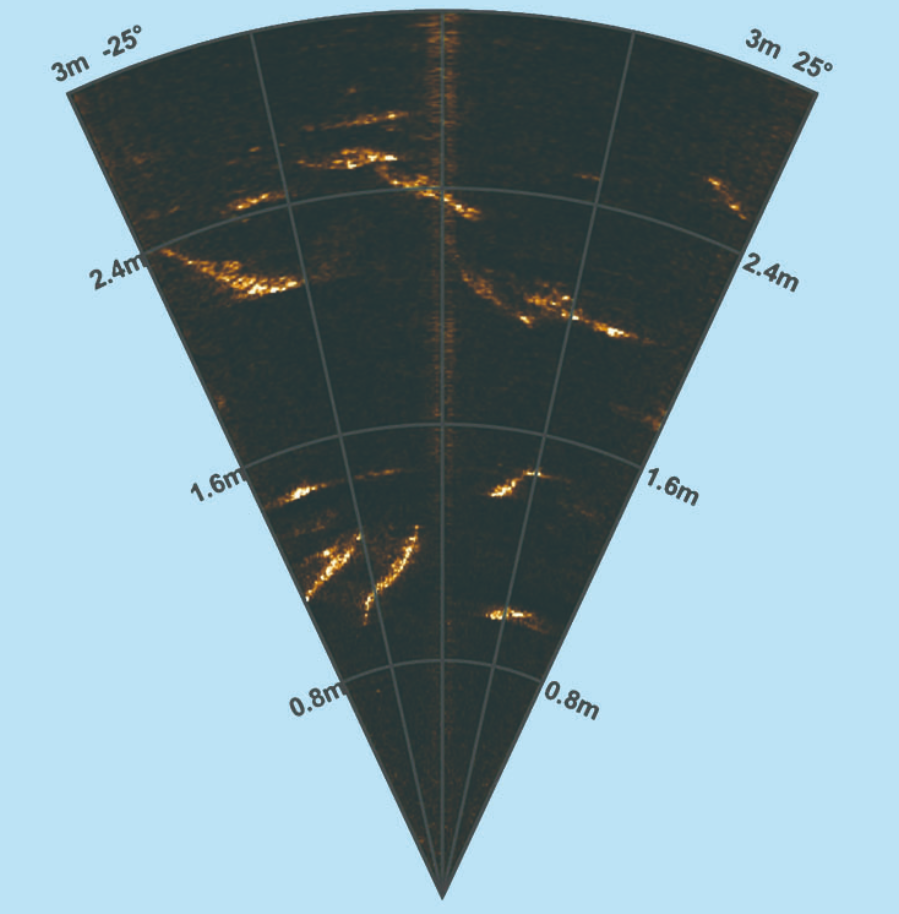

                            扫描假人效果图                                                                                         扫描轮胎效果图                                                                             扫描鱼群效果图

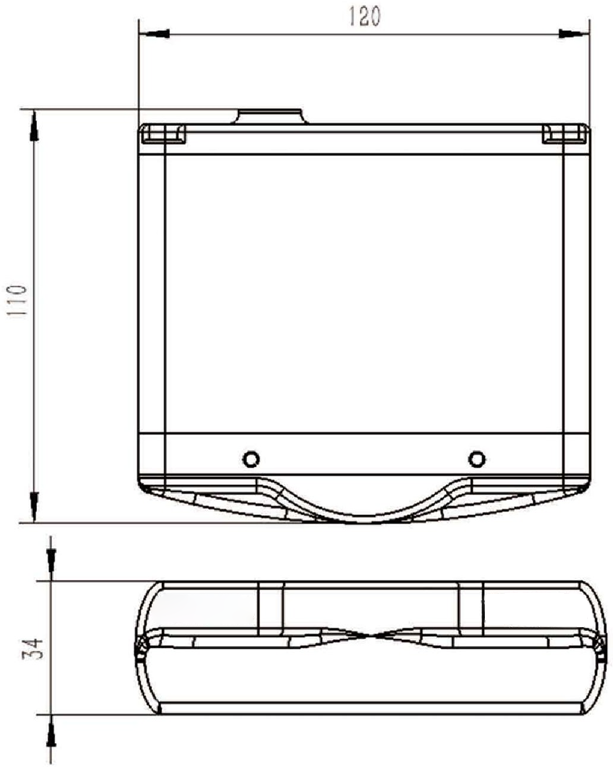

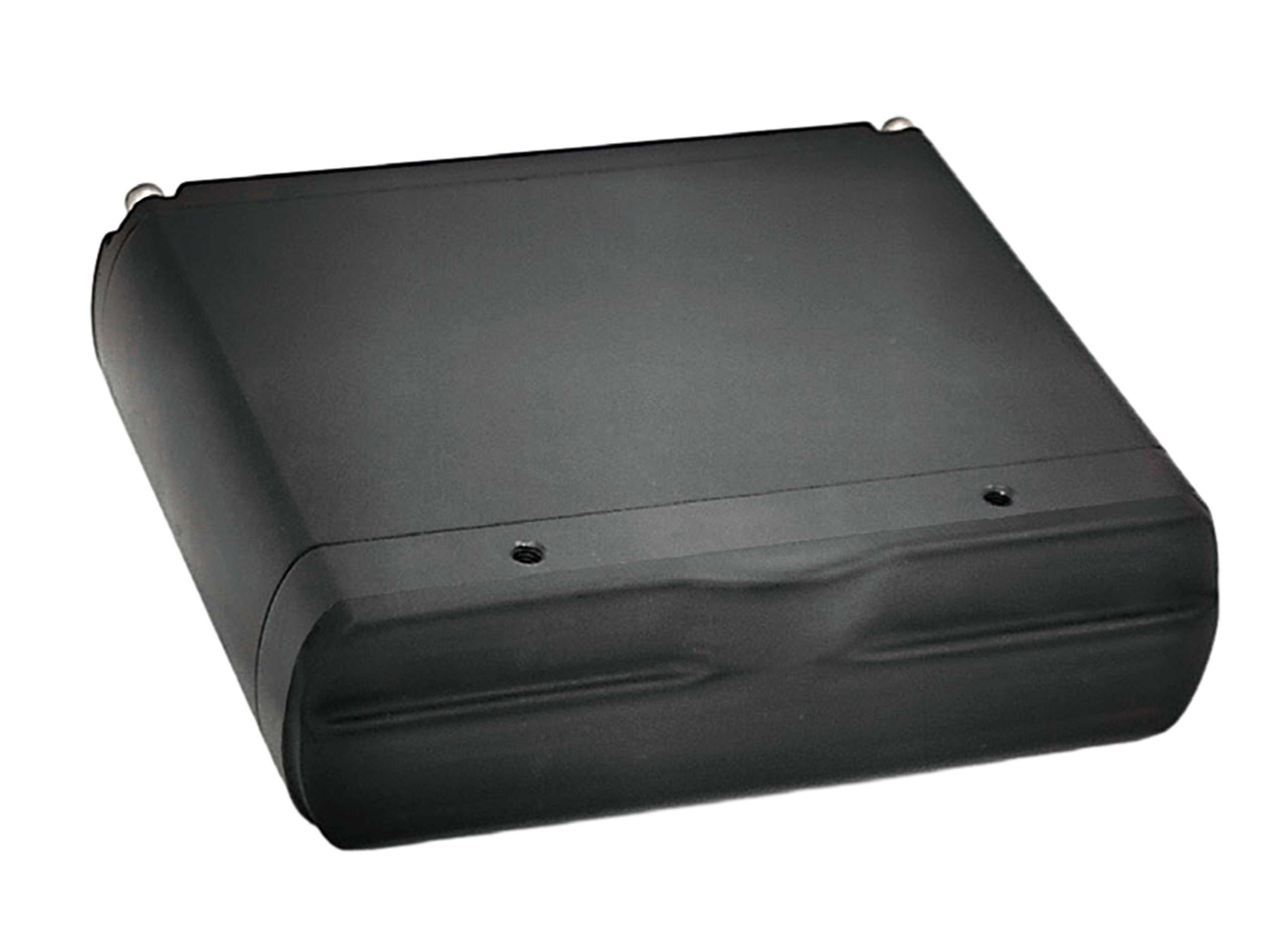

DS1800 external mechanical dimensions and parameters



Center frequency‍

Dual frequency 1.8MHz / 2.7MHZ

Weight

660g

Distance resolution

about8mm/ 5mm

Volume

120 x 103 x 34mm

Update rate

≥10HZ

Average power consumption

about8w

Horizontal perspective

≥80°/50°

Vertical perspective

≥20°/12°

Maximum detection distance

25m / 8m

Beam

256

Central beamwidth

about0.6°/ 0.35°

Depth level

≥300rice


DS1800 video effects

1.8MHz sonar scanning effect on fish schools


2.7MHz sonar scanning effect on fish schools
