DS1100

Be brave in innovation and explore the ocean

DS1100 series miniature forward-looking sonar

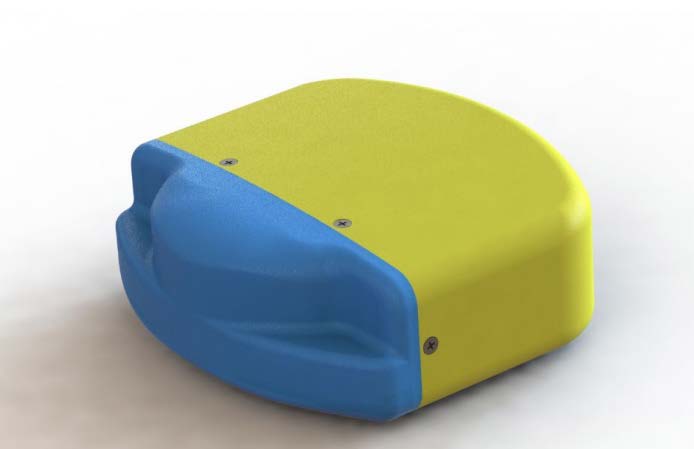

DS1100 imaging rendering

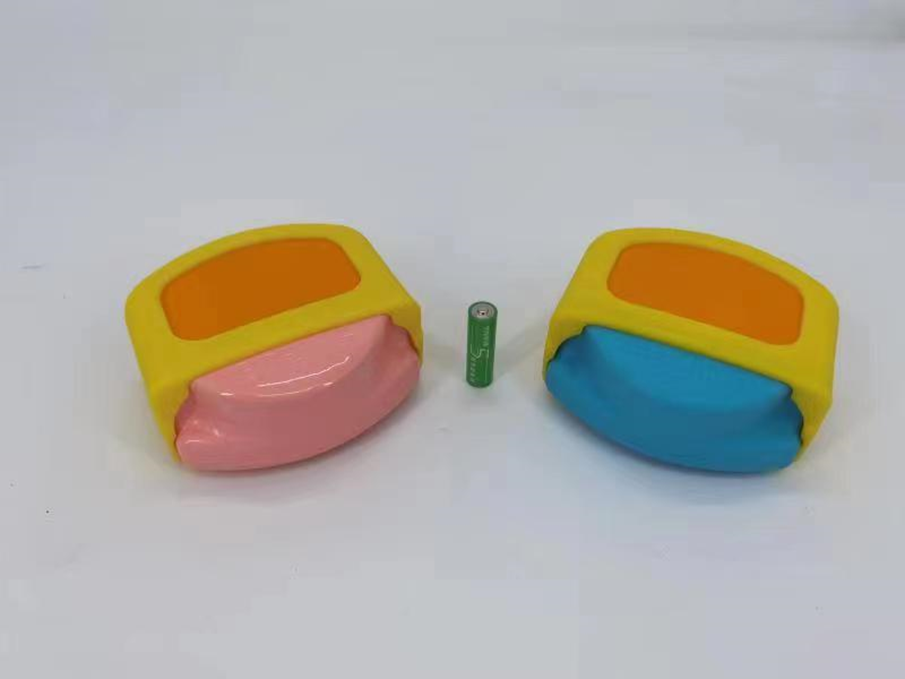

The DS1100 series forward-looking sonar is our company's main forward-looking sonar product, which has a high cost performance ratio and most performance indicators are superior to similar foreign products. The sonar is about 1/5 the size of an A4 paper, with a very small cross-sectional area and smooth surface profile, and has minimal flow resistance. It can operate on high-speed carriers. The products currently available are three models: DS1100b/c/d. Among them, DS1100b is a conventional resolution version, providing a horizontal center acoustic angular resolution of 1 °/0.65 °; DS1100c/d is a high-resolution version that provides a horizontal center acoustic angular resolution of 0.6 °/0.4 °, with DS1100d having a larger high-frequency opening angle. Other indicators are the same。

The DS1100 series forward-looking sonar has two operating frequencies of 700kHz and 1.1MHz (other frequencies can be customized), and users can switch frequencies freely during use. 700kHz is a relatively balanced frequency band, characterized by long detection range and high resolution; The 1.1M frequency band is designed specifically for close range fine observation. This series of sonar has built-in temperature, pressure sensors, and attitude sensors, as well as a built-in operating system and display software, making it ideal as a handheld device for divers. Users can also choose from four flexible display and control solutions, including dedicated display and control software, streaming media playback, browser direct access, and SDK。
