DS700

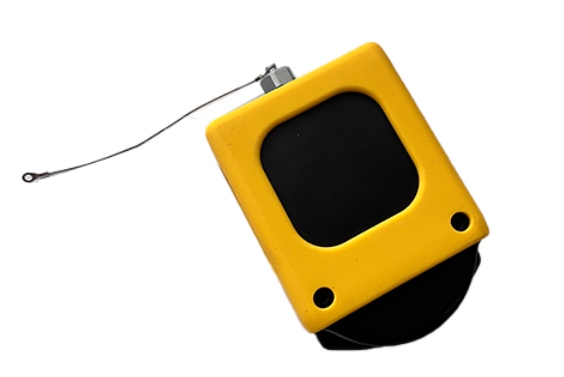

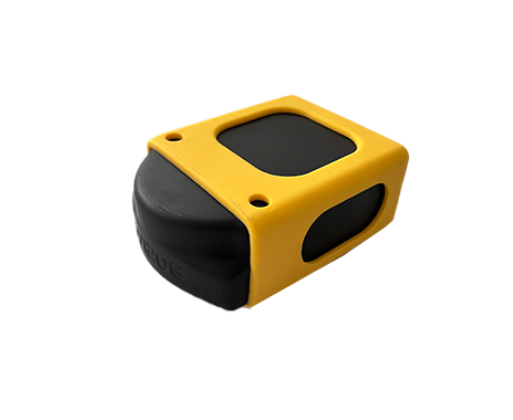

‍DS700 series miniature forward-looking sonar‍

The DS700 series miniature forward-looking sonar is a two-dimensional forward-looking multibeam imaging sonar that can provide acoustic vision of the carrier in clear or turbid water, achieving functions such as target detection and recognition, collision avoidance, and obstacle detection. And provide a nationally produced and independently controllable version.

This type of sonar is designed specifically for micro underwater vehicles and divers who have strict requirements for size and power consumption, and are handheld and head mounted. The DS700 forward-looking sonar has two operating frequencies of 700KHz and 1.1MHz (other frequencies can be customized), and users can switch frequencies freely during use. 700KHz is a relatively balanced frequency band, characterized by long detection range and high resolution; The 1.1M frequency band is designed for close range observation. This type of sonar has built-in temperature, pressure sensors, and attitude sensors. Users can choose from four flexible display and control solutions, including dedicated display and control software, streaming media playback, browser direct access, and SDK。
